Septic System Components and Upgrades

TJ Tolley • Mar 01, 2024

How Septic Systems Work


How Septic Systems Work:

Septic systems are underground wastewater treatment structures commonly used in rural or older neighborhoods without centralized sewer systems. They work by treating and disposing of household wastewater on-site. Here's a simplified breakdown of how they operate:

  1. Wastewater Generation: Wastewater from sinks, toilets, showers, and laundry drains into the septic tank through the main sewer line from the house.

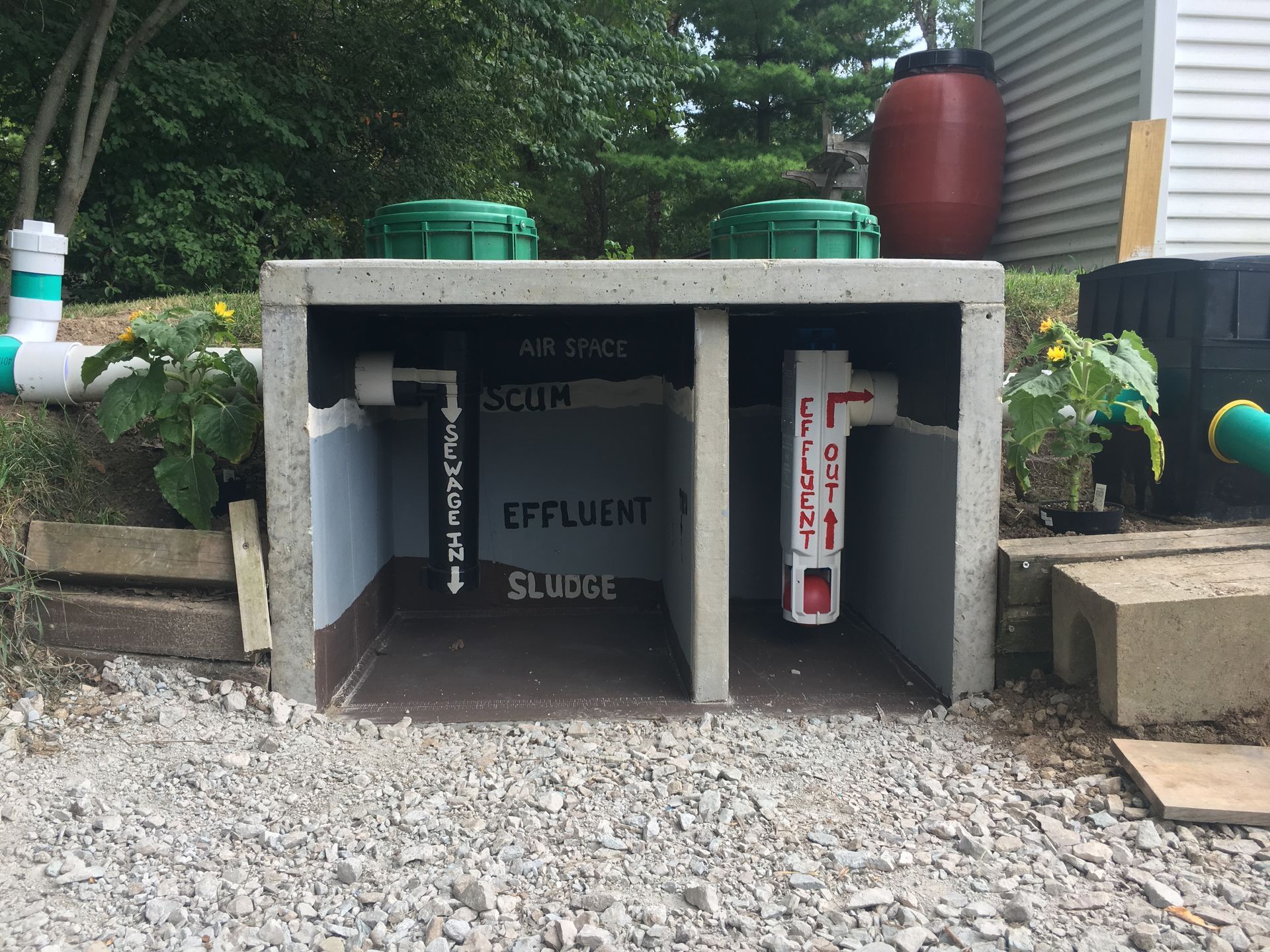

  2. Separation and Treatment: Inside the septic tank, solid waste settles to the bottom to form sludge, while lighter materials like grease and oils float to the top as scum. Bacteria present in the tank help break down organic matter.
  3. Liquid Effluent: The liquid effluent, which is relatively clear, exits the tank and flows into the absorption field (also known as leach field or drain field) through a series of pipes.
  4. Soil Filtration: In the absorption field, the effluent is distributed evenly across the soil where it undergoes further treatment as it percolates through layers of soil, which act as a natural filter, removing harmful bacteria, viruses, and nutrients.
  5. Final Disposal: Once filtered, the treated effluent recharges the groundwater or evaporates into the air, completing the treatment process.

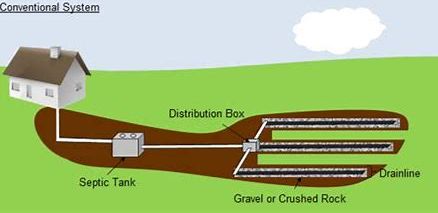

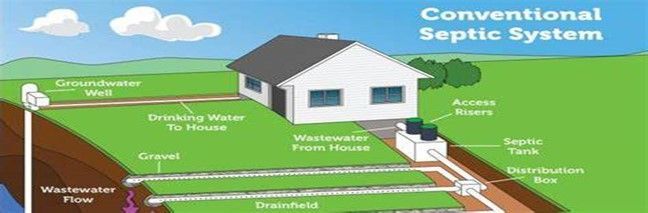

Components of a Septic System:



  • Cleanout: A cleanout is the first access point every septic system can benefit from. It allows access for maintenance and inspection between the home and septic tank. These are usually located within five feet of the home but may also be located in crawlspaces or basements.
  • Septic Tank: This is the primary treatment unit where solid waste is separated from wastewater.
  • Riser: A riser is the neck that is attached to the tank and is the base for a lid to attach to. Risers should be elevated and mildly landscaped around to prevent damage from mowers and weed eaters.
  • Lids: Often, septic tank lids that are buried are more difficult to locate. Modernizing your septic system with risers and lids allows for ease of access for both the homeowner and septic professionals.
  • Inlet and Outlet Pipes: Inlet and outlet pipes are located on septic tanks, dosing tanks, and distribution boxes. These are how effluent is guided away from the home and eventually into the soil.
  • Seals: Seals are installed around any piping entering or exiting any tank.
  • Baffles: Baffles help guide effluent or control floating debris from exiting the tank. Concrete baffles typically wear out and fall into the tank. It is best to replace and corroded concrete baffles with a sanitary T.
  • Distribution Box: To evenly distribute effluent from the septic tank into the absorption field, distribution boxes are commonly used. In some distribution boxes, diverters may be necessary to equal the flow evenly to each finger in the absorption field.
  • Absorption field: This is where the final treatment and disposal of effluent occur. It is paramount to protect this area from driving or building on. Compacting the soil with vehicles or livestock can cause the ground to no longer take on water.
  • Soil: Soil plays a vital role in treating effluent by filtering out contaminants. Older systems that are maintained properly may establish a bio mat that also restricts the natural absorption of effluent. New Paragraph


Importance of Upgrades and Maintenance:

Regular maintenance and occasional upgrades are essential to ensure the longevity and efficiency of your septic system. Here's why:

  1. Preventative Maintenance: It is recommended to understand the pumping frequency for your septic system. Your lifestyle dictates. It helps remove accumulated solids and prevents tank overflow or backups into the house. We recommend having your septic system professionally inspected during that time to determine a more accurate schedule for your lifestyle.
  2. Component Inspection: Regular inspections by qualified professionals can identify potential issues early, such as leaks, damaged components, or signs of failure.
  3. Efficiency Improvements: Upgrading to more efficient fixtures and appliances can reduce water usage, alleviating the workload on your septic system and extending its lifespan.
  4. Repair and Replacement: Addressing minor issues promptly can prevent them from escalating into costly repairs or the need for total system replacement.
  5. Environmental Protection: A well-maintained septic system minimizes the risk of groundwater contamination and protects the environment and public health.

In conclusion, understanding how your septic system works and investing in its maintenance and upgrades are essential responsibilities for homeowners. By taking proactive measures, you can ensure the continued functionality and environmental sustainability of your septic system for years to come.
